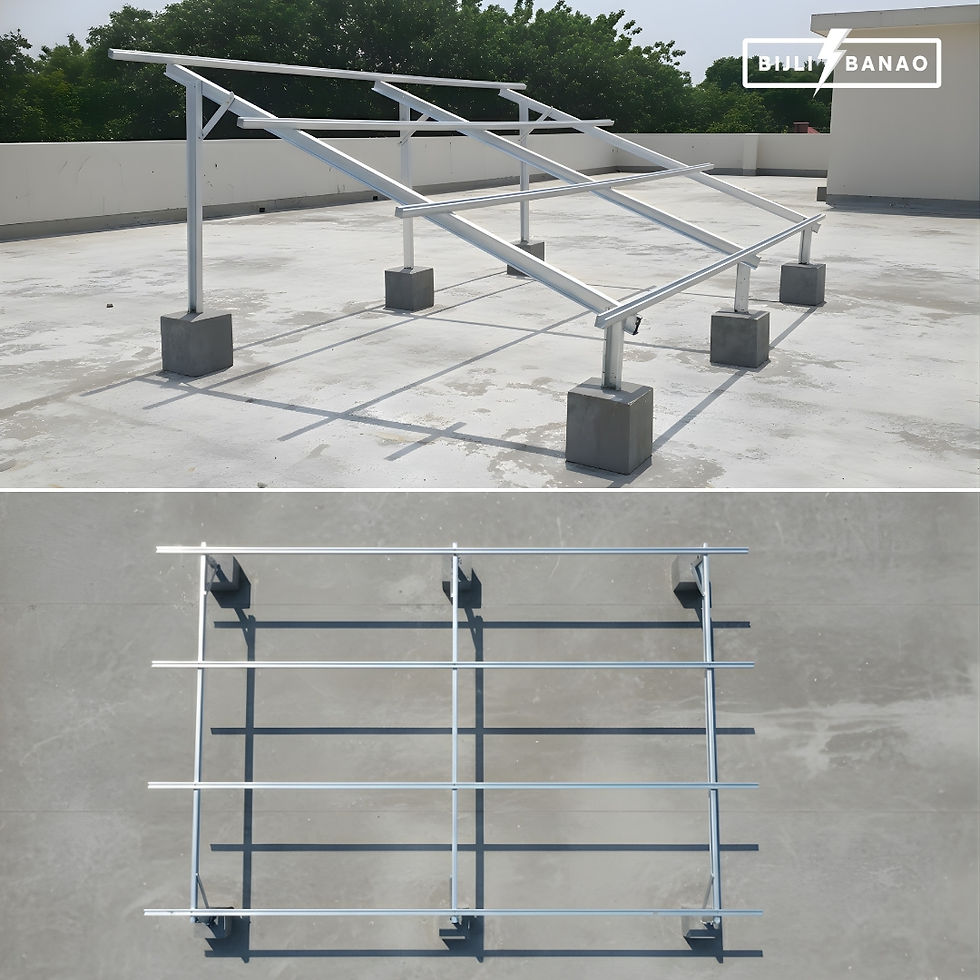

The Solarware 10 Panel Solar Mounting Structure in Standard Height configuration is designed for secure rooftop solar installations supporting up to 10 solar panels arranged in a 2-row layout. Manufactured using Hot Dip Galvanized (HDG) steel, this structure provides superior corrosion resistance and durability, making it suitable for long-term outdoor installations including coastal and high-humidity environments.
The standard height design ensures stable panel tilt positioning while maintaining structural strength and ease of installation. The HDG coating offers extended protection against rust compared to conventional galvanized finishes, making it ideal for installations requiring longer service life.
This product is supplied as a DIY mounting kit intended for installation by experienced installers or under professional supervision following proper safety practices.
SPECIFICATIONS:
Brand: Solarware
Model: SWST-P10R2-SHHDG-V1
Panel Capacity: 10 Panels
Structure Type: Rooftop Fixed Tilt
Row Configuration: 2 Row
Height Type: Standard Height
Material: Galvanized Iron (GI)
Compatibility: Standard Solar Panels
Installation Surface: RCC Rooftop
Corrosion Resistance: Yes
Wind Suitability: Standard Wind Zones
Assembly Type: DIY Kit
Corrosion Protection: Heavy Zinc Coated
CONTENTS:
6 Base Plates
3 Rafters – 12 Ft
4 Purlins – 21 Ft
3 Front Legs – 3.5 Ft
3 Back Legs – 5.5 Ft
12 Mid-Clamps
8 Z-Clamps
20 Spring Nut Bolts for Clamps
70 Nut & Bolt Sets
3 Angle Bracing - 2 Ft
WARRANTY:
10 Years Warranty
HDG Structure Expected Life:
Approximately 20–25 Years depending on environmental exposure and maintenance practices.
IDEAL FOR:
Residential rooftop solar systems
Commercial rooftop installations
Coastal or high humidity areas
Long-life solar mounting needs
WHY HDG MATERIAL:
Superior corrosion resistance
Longer lifespan than GI
Better suited for coastal regions
Lower long-term maintenance
Strong protective zinc coating
DIY + LIABILITY DISCLAIMER:
This product is supplied as a DIY structural kit. Installation must be carried out by skilled personnel or under expert supervision while following all required safety standards, load calculations, and rooftop suitability checks.
BijliBanao (Solarware Industries) acts strictly as a material supplier and shall not be responsible for installation practices, structural performance of rooftop surfaces, damages, losses, or any consequences arising due to improper installation or usage under any circumstances.
Solar Panel Stand Compatibility Guide
Panel Compatibility:
Supports modern 500W–650W solar panels, including TopCon, N-Type and Mono PERC half-cut modules.
System Capacity Compatibility:
Suitable for rooftop solar systems typically ranging from 1kW to 30kW, depending on panel quantity and configuration.
Panel Installation Options:
Available for 1, 2, 3, 4, 6, 8, 10, 16, 20, 30 and 50 panel installations.
Structure Types:
Available in Standard Rooftop, High Rise and Pergola Style solar mounting structures.
Applications:
Suitable for residential, commercial and small industrial rooftop solar installations.
Note:
Panel quantity and system capacity may vary depending on roof layout, panel wattage and installation design.
FAQ
Which solar panels work with this structure?
This structure supports modern 500W–650W solar panels, including TopCon, N-Type and Mono PERC half-cut modules.
What system size can this structure support?
Depending on panel quantity and configuration, this structure can support small residential systems as well as larger rooftop solar installations up to approximately 5-7kW.
