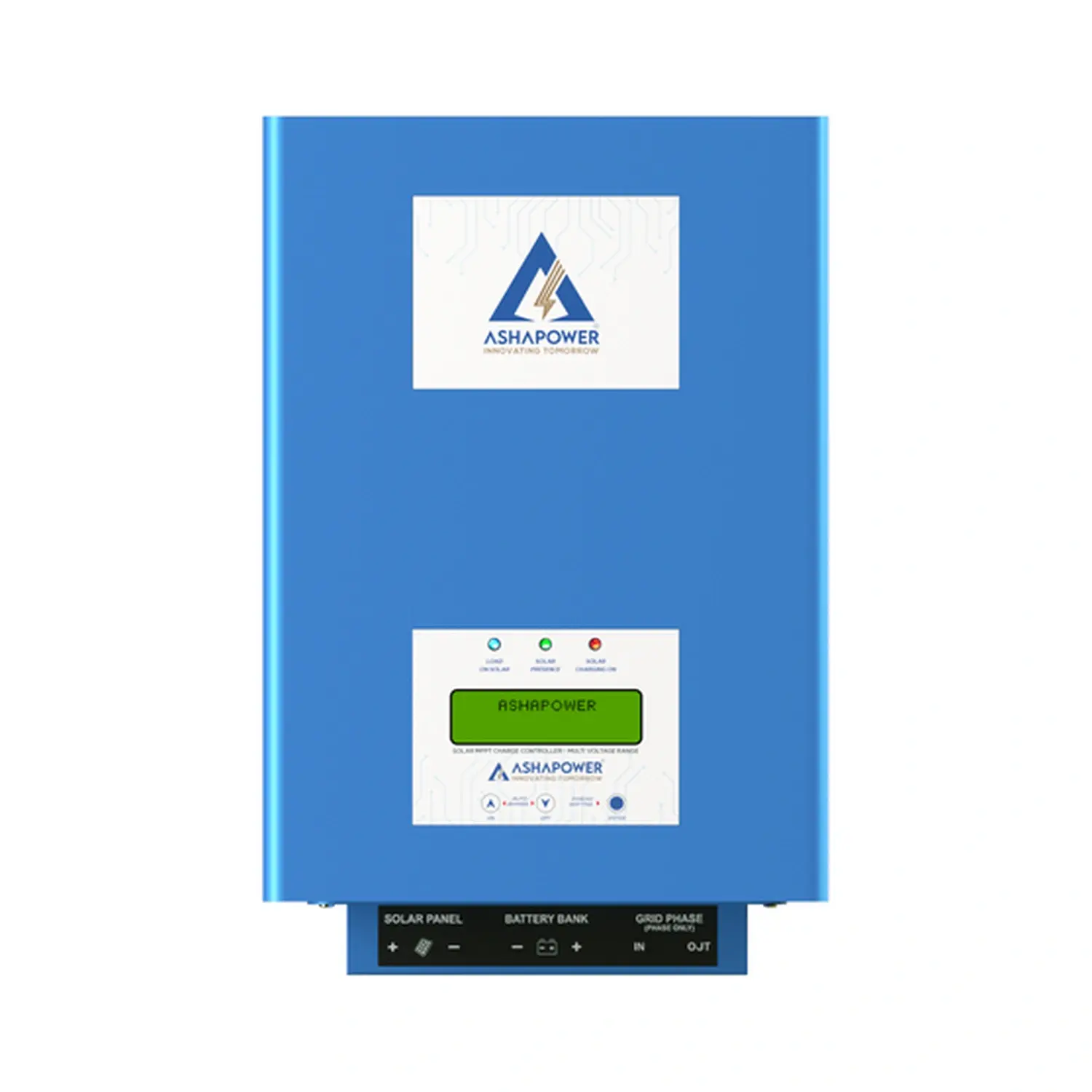

The Ashapower NEON-80 HV is an MPPT solar charge controller for 12V/24V/36V/48V battery systems, with a maximum charging current of 80A. Check the PV input limits below for your battery-bank voltage.
Technical specifications
Specification | Value |
Over Charge Protection | YES |
Display | 2 x 16 LCD |
Dimensions - L x W x H (mm) | 345x213x142 |
Nominal Battery Voltage | 12V/24V/36V/48V (Self Setting) |
Maximum Charging Current | 80A |
Connector | Input/Output Terminal block |
Standby Power Consumption | <2W |
Maximum Tracking Efficiency | 98.9% |
Battery Reverse Polarity Protection | Optional — confirm whether fitted to the supplied unit |
Max PV Array Open Circuit Voltage (Voc) | 12V-120Voc/ 24V-165Voc/ 36V-180Voc/ 48V-210Voc |
Net Weight (Kgs) | 4.8 |
Max PV Array Watts Applicable | 12V-2000Wp/ 24V-3200Wp/ 36V-4400Wp/ 48V-6000Wp |
Overload Protection | YES |
Panel Reverse Polarity Protection | YES |
Before installation
Match the battery charging settings and PV string limits to this model. For lithium, confirm the battery manufacturer’s approved profile and BMS requirements; do not apply lead-acid equalization settings by default.
