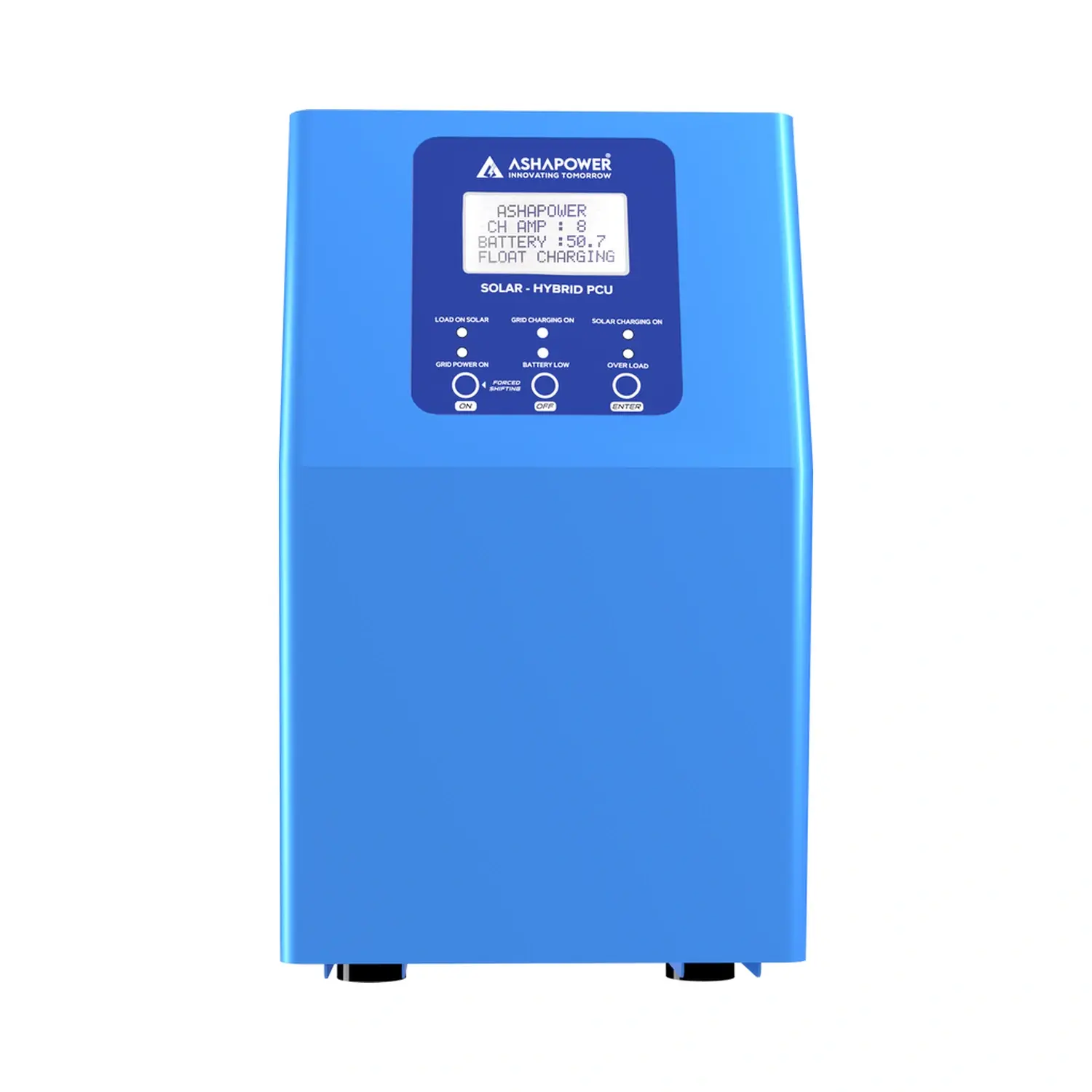

The Ashapower ROVER 5248 - 48V LV combines an inverter and MPPT solar charging for a 48V DC battery bank. Check AC output and PV input ratings separately when selecting your system.
Technical specifications
Specification | Value |
No load battery Power Consumption | 0.7A +.3 |
Maximum grid battery charging current | 4A TO 20A (configurable) |
Nominal Battery Voltage | 48V DC |
Humidity | 0 to 90% RH (No dew) |
Operating temperature | -20 degree to 65 degree C |
Storage temperature | -30 degree to 80 degree C |
Max. Applicable PV Panel Load on MPPT | 5200Wp |
Dimensions – L x W x H (cm) | 47.7 x 25.3 x 39.2 |
Net Weight (Kgs) / Gross Weight (Kgs) | 37 / 40 |
Connectors | 6Way Input/Output Terminal block |
Panel Reverse Polarity Protection | YES |
Battery Reverse Polarity Protection | Optional — confirm whether fitted to the supplied unit |
Display | 4 line LC Display |
Maximum MPPT tracking efficiency | 98.9% |
Maximum solar Charging Current | 60A (configurable) |
Max. Applicable PV Panel VOC | 185 V |
Standby grid Power Consumption | Zero at idle stage |
Overload Protection From PV Panel | YES |
Over Charge Protection from grid and solar | YES |
Before installation
Match the battery charging settings and PV string limits to this model. For lithium, confirm the battery manufacturer’s approved profile and BMS requirements; do not apply lead-acid equalization settings by default.
